Description
3S DJ Gaskets are mainly used in Heat Exchanger applications but can also used in standard piping flanges.

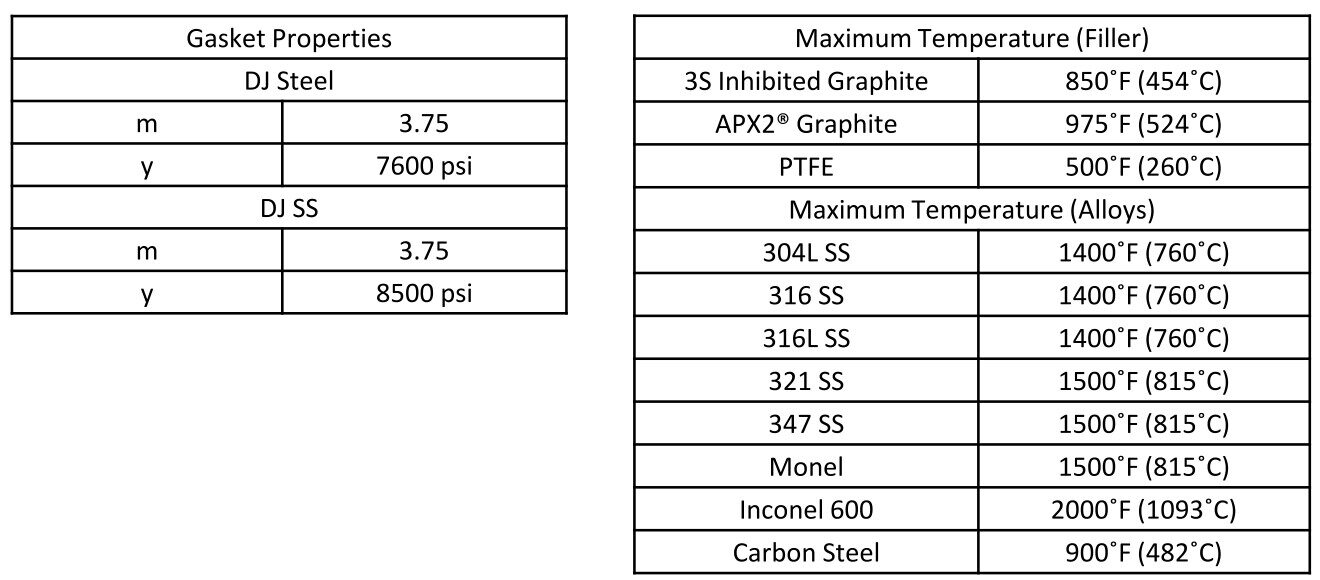

The metallic jacketed part of the gasket can be manufactured in a range of materials as specified below. The filler material is typically graphite but PTFE can also be used for media resistance

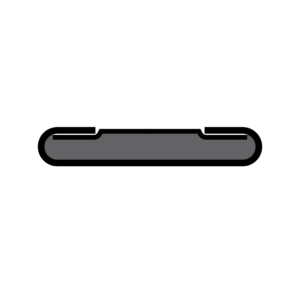

3S Style DJ100:
Standard Double Jacketed Gasket

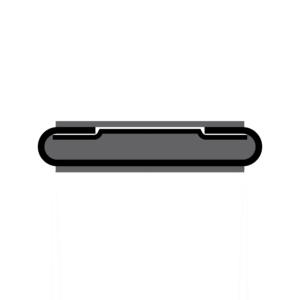

3S Style DJ200:
Standard Double Jacketed Gasket with a soft facing material

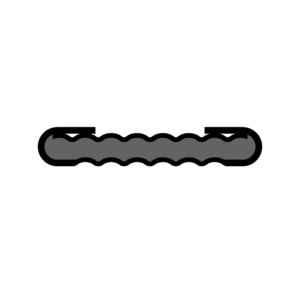

3S Style DJ300:
Corrugated Double Jacketed Gasket
3S Style DJ400:
Multiple Corrugated Double Jacketed Gasket – no soft filler material
3S Style DJ500:
Multiple Corrugated Double Jacketed Gasket – with soft filler material
